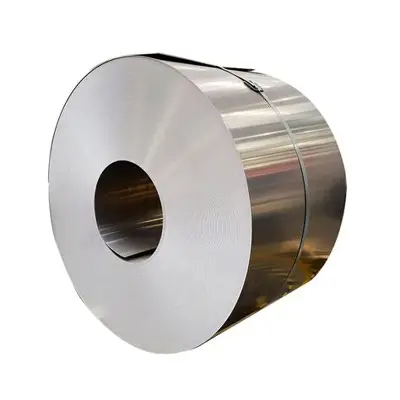

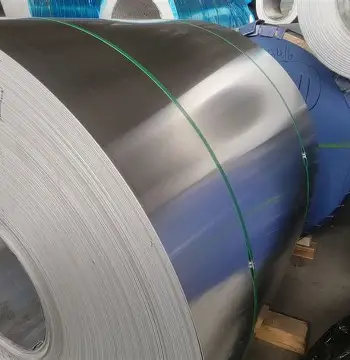

Monel 400 Coil

Overview & Core Advantages

Monel Alloys are high-performance nickel-copper alloys (comprising approximately 67% Nickel and 30% Copper). As one of the most versatile corrosion-resistant alloys in industrial use, the Monel series is indispensable in marine engineering, chemical processing, and the oil and gas sectors.

Why Choose Monel Alloys?

Superior Corrosion Resistance: Exceptional performance in hydrofluoric acid, fluorine gas, hot concentrated alkali solutions, and seawater.
Zero Stress Corrosion Cracking (SCC): Virtually immune to chloride-ion stress corrosion cracking in most environments.
Wide Temperature Range: Maintains high mechanical strength from sub-zero temperatures up to $480^circtext{C}$ ($900^circtext{F}$).
Excellent Workability: High suitability for machining, welding, and thermoforming.

Monel 400: The Corrosion-Resistant Standard

Monel 400 is a solid-solution alloy that can only be hardened by cold working. It is the "workhorse" of the series.

Key Applications: Marine heat exchangers, desalination units, salt production equipment, and sulfuric/hydrochloric acid environments.
Keywords: Monel 400 plate, Nickel-Copper 400, hydrofluoric acid resistant alloy.

Product Name	Monel 400 Coil
Thickness	2.5mm-10.0 mm
Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc.
Width	610-2000 mm
Standard	ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface	BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.
Certificate	ISO, SGS, BV
Production Technology	Hot Rolling, Cold Rolling

Technical Specifications: Monel 400 vs. R405 vs. K500

This table provides a technical comparison to help you select the precise grade for your application requirements.

1. Chemical Composition (%)

Element	Monel 400 (UNS N04400)	Monel R405 (UNS N04405)	Monel K500 (UNS N05500)
Nickel (Ni)	63.0 min	63.0 min	63.0 min
Copper (Cu)	28.0 - 34.0	28.0 - 34.0	27.0 - 33.0
Aluminum (Al)	-	-	2.30 - 3.15
Titanium (Ti)	-	-	0.35 - 0.85
Iron (Fe)	2.5 max	2.5 max	2.0 max
Sulfur (S)	0.024 max	0.025 - 0.060	0.01 max
Category	Standard Grade	Free-Machining	Precipitation Hardened

2. Physical & Mechanical Properties

Property	Monel 400	Monel R405	Monel K500 (Aged)
Density ($g/cm^3$)	8.80	8.80	8.44
Melting Range	$1300 - 1350^circtext{C}$	$1300 - 1350^circtext{C}$	$1315 - 1350^circtext{C}$
Tensile Strength (MPa)	$ge 480$	$ge 480$	$ge 960$
Yield Strength (MPa)	$ge 170$	$ge 170$	$ge 690$
Elongation (%)	35 - 45	30 - 40	20
Hardness (HB)	135 - 179	135 - 179	260 - 320

Product Details

We adopt high standard production processes, select high-quality steel raw materials, and provide diverse product specifications and models. All steel products have passed strict quality testing, with smooth and even surfaces, precise dimensions, excellent compressive strength, corrosion resistance, and processability. Support customized thickness, length, and special process requirements to meet different usage standards in different scenarios. Clear display of high-definition detailed images and technical parameter tables of the physical object, ensuring transparent and visible quality.

Packaging And Shipping

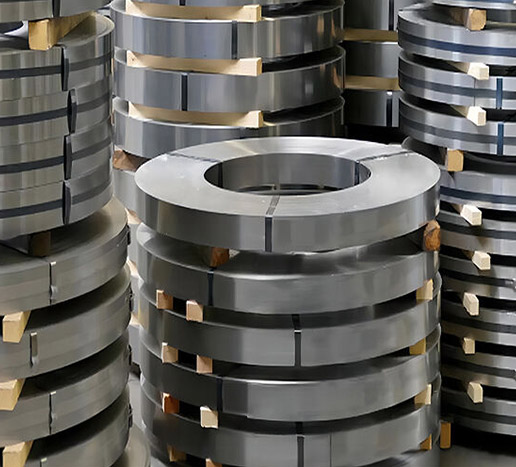

Adopting a professional industrial packaging solution that is moisture-proof and scratch resistant, each batch of steel is tied and fixed with customized wooden frames/steel strips, combined with anti rust coatings and cushioning pads to ensure zero damage during transportation. Clear product model, batch number, and storage identification on the outer packaging, supporting customized enterprise logos and information labels. Environmentally friendly and recyclable packaging materials practice green concepts, reducing transportation and disassembly costs.
